The PWL-MS Mono-Shell Pole Welding Line allows you to weld round, conical and polygonal multi-sides poles without pre-tack welding, up to a diameter of 820 mm and thicknesses from 3 mm up to 8 mm (10 mm on request).

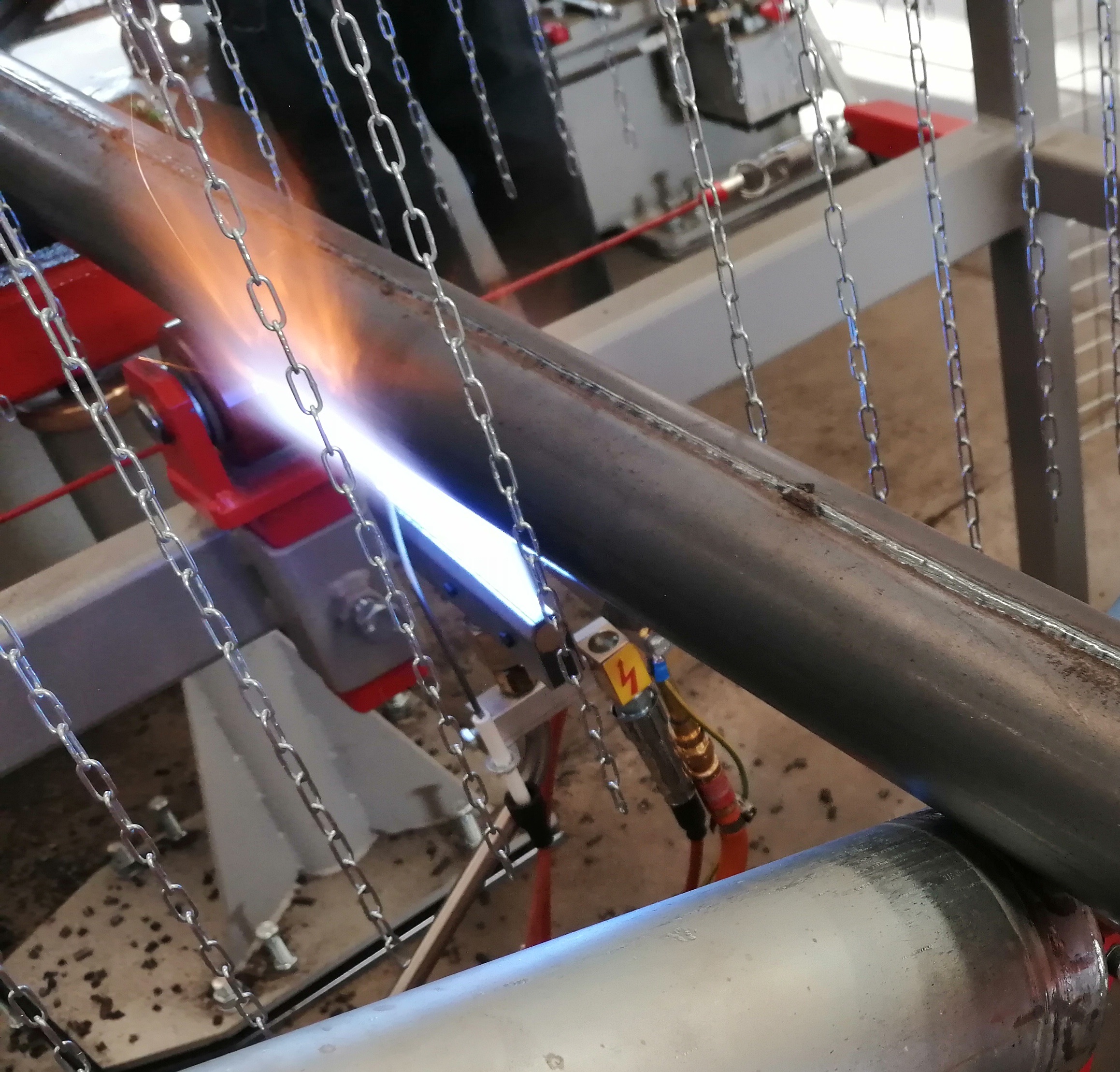

An integrated water-cooled copper bar is always present to ensure an efficient and reliable backing as well as the right welding penetration and an post-heating device (induction or gas) makes it possible to compensate for thermal deformations in order to optimize transport dimensions.
The line is composed by a V-shape in-feed/out-feed conveyors and a triple-axis main welding unit’s centering system, that enable the welding of the poles without the need of pre-tacking.

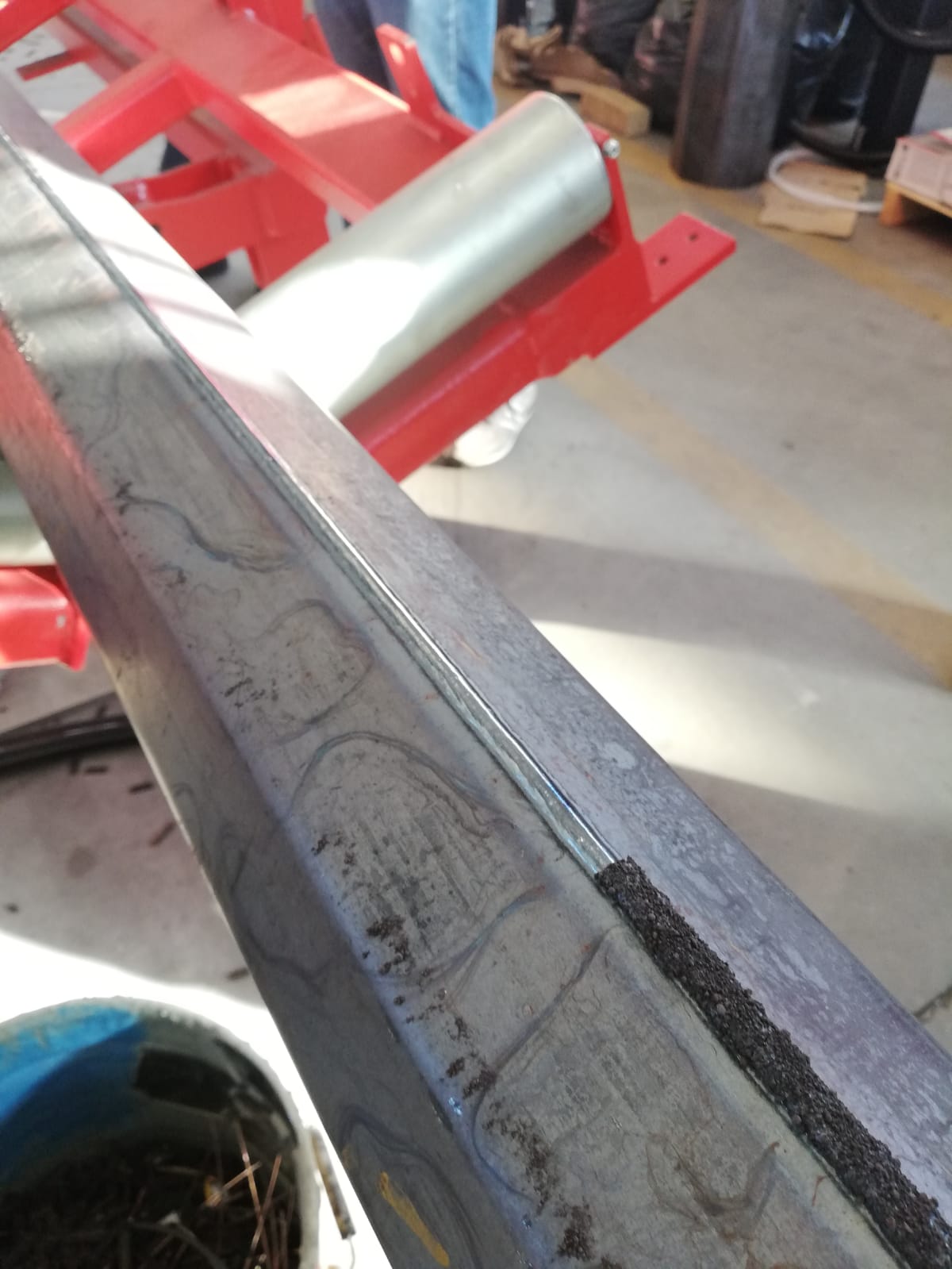

The angle of the V shape conveyor rolls are adjustable according to the multi-sides pole geometry and, the same function, is present also in the main welding machine to guarantee a proper driving of the pole under the welding phase.
The main drive rolls are powered by brushless motors to properly control the speed as well as to ensure an efficient anti-twisting capability of the machine.
| PWL Mono-Shell | |
|---|---|
| NUMBER OF SHELL | 1 |
| TYPES OF POLES | Round Tapered & Polygonal Tapered |
| NUMBER OF SIDES | 8 / 12 / 16 / 20 |
| POLE DIAMETER Ø | 60 / 820 mm |
| POLE THICKNESS | 3 – 8 mm (10 mm on request) |
| POLE LENGHTS | 3 – 14 m |
| WELDING SPEED | 0.15 – 3 m/min |
| TYPE OF WELDING | Submerged-Arc Single wire |
In Corimpex we produce high-quality accessories and we provide an efficient after-sale service, which confirm the reliability of a Made In Italy company, world leader in the industry segment.
